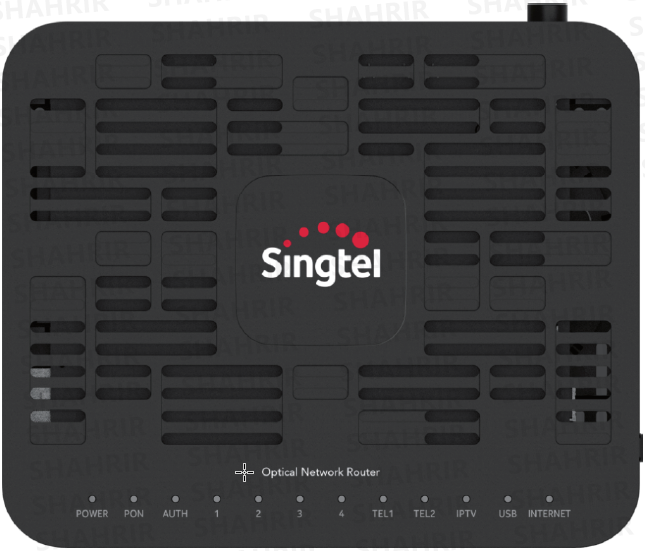

The colours of each LED light on your Nokia G240 Optical Network Router (ONR) have different meanings. Use this guide to understand more.
POWER LED:
- No light: No power is supplied to the ONR.
Check the power supply and ensure that the power adapter is secured.
- Red: ONR startup failed.
- Blinking Amber: New firmware downloading
- Blinking Green: ONR is booting up
- Green: ONR is powered on. The LED displays amber first, then flashing green and turns steady green.
PON:
- No light: No light source detected
- Blinking Green: ONR ranging
- Green: ONR has ranged successfully
AUTH:
- No light: ONR is not authorized/authenticated
- Blinking Green: ONR ranging/ synchronizing
- Green: ONR is authorized/authenticated.
LAN 1-4:
- No light: No ethernet connection.
- Green: Connected to an ethernet device.
- Blinking Green: Data is transmitting or receiving between devices.
TEL 1-2:
- No light: Telephone is down
- Blinking Green: Telephone is up and the phone is off the hook or ringing
- Green: Telephone is up
LAN 1-4:
- No light: No ethernet connection.
- Green: Connected to an ethernet device.
- Blinking Green: Data is transmitting or receiving between devices
IPTV:
- Green: Singtel TV connection is working
- Blinking Green: Singtel TV connection unable to obtain IP address
- No light: No Singtel TV Set-top Box detected
Internet:
- Green: Internet connection is up.
- Blinking Green: Active Internet traffic.
- No light: Internet service is down.
